When it comes to electrical work in bathrooms, laundries, kitchens, and outdoor areas, safety isn’t optional — it’s regulated. The Australian and New Zealand Wiring Rules, AS/NZS 3000, clearly define “wet area zones” that specify where electrical fittings can be placed, what types of equipment are permitted, and what protection levels are required.

At Approved Electrix, our local electricians work with Melbourne homeowners and builders to ensure all wet area electrical installations are safe, compliant, and future-ready. If you’re renovating, rewiring, or building new, understanding these zones is essential.

What Are Wet Area Zones?

The AS/NZS 3000 standard breaks wet areas into three main zones, each with its own restrictions and IP (Ingress Protection) requirements:

Zone 0 – Inside the Shower or Bath

This area includes the interior of the shower base or bathtub. Only Safety Extra-Low Voltage (SELV) equipment (typically 12V) may be used, and fittings must have a minimum IPX7 rating — fully protected against immersion.

Zone 1 – Above the Shower or Bath

This zone extends up to 2.5m vertically above the shower head or bathtub rim. Only fixed, water-resistant appliances rated IPX4 or better may be used, such as water heaters and exhaust fans.

Zone 2 – 600mm Beyond the Shower or Bath

Zone 2 continues 600mm horizontally outside of Zone 1, and up to 2.25m high. Electrical fittings here must also be IPX4-rated, and only specific types such as enclosed light fittings, mirror demisters, or approved shaver sockets may be installed.

Clearances Near Basins and Sinks

Where basins or troughs are concerned, the zone rules differ based on water capacity.

< 45L Basin: Switches and outlets must be at least 150mm horizontally from the edge.
> 45L Basin (like in laundries): Often treated similar to a bath, with additional distance and IP requirements.

Outdoor Taps and Power Points

Outdoor environments are considered high-risk due to exposure. AS/NZS 3000 recommends:

Power outlets must be at least 300mm horizontally from taps
Outlets must not be installed directly below a tap
All fittings must be IPX4-rated or higher and enclosed in weatherproof housings

Fixed Plumbing Exceptions

Power outlets can be located next to or below fixed plumbing connections — like dishwashers or washing machines — provided the plumbing is permanent and sealed, and the outlet is safely positioned away from any splash or leak risk. This is common and compliant in modern kitchens and laundries.

Visual Reference: AS/NZS 3000 Diagrams

To fully understand wet area zones, consult the official diagrams in AS/NZS 3000:2018 (Clause 6.2.4). These visual aids show exactly where Zones 0, 1, and 2 begin and end in relation to showers, bathtubs, and basins.

Note: For licensing reasons, we can’t publish the diagrams here. You can access them via Standards Australia or through your licensed electrician.

Trusted Products for Wet Areas

We always specify fittings that are compliant with AS/NZS 3000, durable, and visually clean. For both outdoor and indoor wet areas, we recommend the Clipsal Iconic range, designed in Australia to meet modern electrical safety requirements.

Clipsal Iconic Outdoor – Perfect for Zone 1 & 2

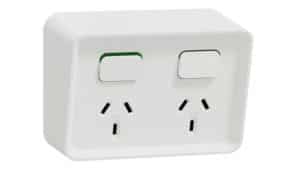

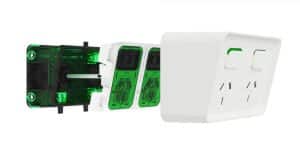

O3025-XW – Double Weatherproof Power Point (IP54)

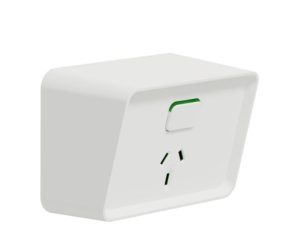

O3015-XW – Single Weatherproof Power Point (IP54)

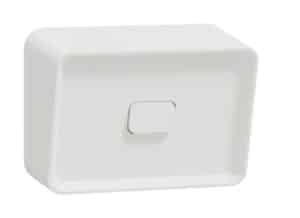

O3041HA-XW – 1 Gang Weatherproof Switch (IP56)

Clipsal Iconic Indoor – Ideal for Kitchens, Bathrooms & Laundries

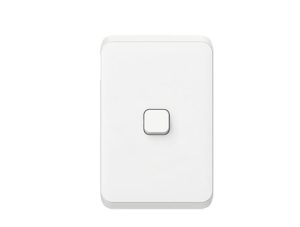

3041V44-VW – 1 Gang Vertical Switch, 10AX, 230/240V, IP44

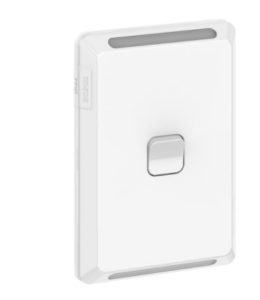

P3041V44-XW – Pro Series 1 Gang Vertical Switch, 20A/16AX, 230/240V, IP44

These products not only meet compliance — they look great in any modern home or renovation project.

Why This Matters

Improper electrical installations in wet zones aren’t just non-compliant — they can be life-threatening. Avoiding risk means:

Using the right fittings
Following spacing regulations
Consulting a licensed electrician to ensure total safety

That’s where we come in.

Need a Bathroom or Laundry Rewired?

We offer:

Full compliance with AS/NZS 3000
Supply and install of weatherproof & IP-rated fittings
Hardwired smoke alarms, exhaust fans, and modern LED lighting
Professional service across Melbourne, backed by a lifetime workmanship warranty

Call Approved Electrix on (03) 8370 5737

Visit: approvedelectrix.com.au

Dean Barton

Dean Barton is the Director and founder of Approved Electrix, a Melbourne-based electrical contracting company with over 15 years of hands-on industry experience. Dean is a fully qualified and licensed A-Grade electrician in Victoria and a registered electrical contractor, delivering residential, commercial, and industrial electrical projects across Melbourne in strict compliance with AS/NZS 3000 Wiring Rules and Victorian electrical regulations.

Approved Electrix is a proud Master Electricians Australia member, and Dean is directly involved in quoting, system design, compliance checks, and final quality assurance on every job. He works closely with homeowners, builders, architects, and property managers to provide safe, reliable, and future-proof electrical solutions.
